Metallurgical Integrity

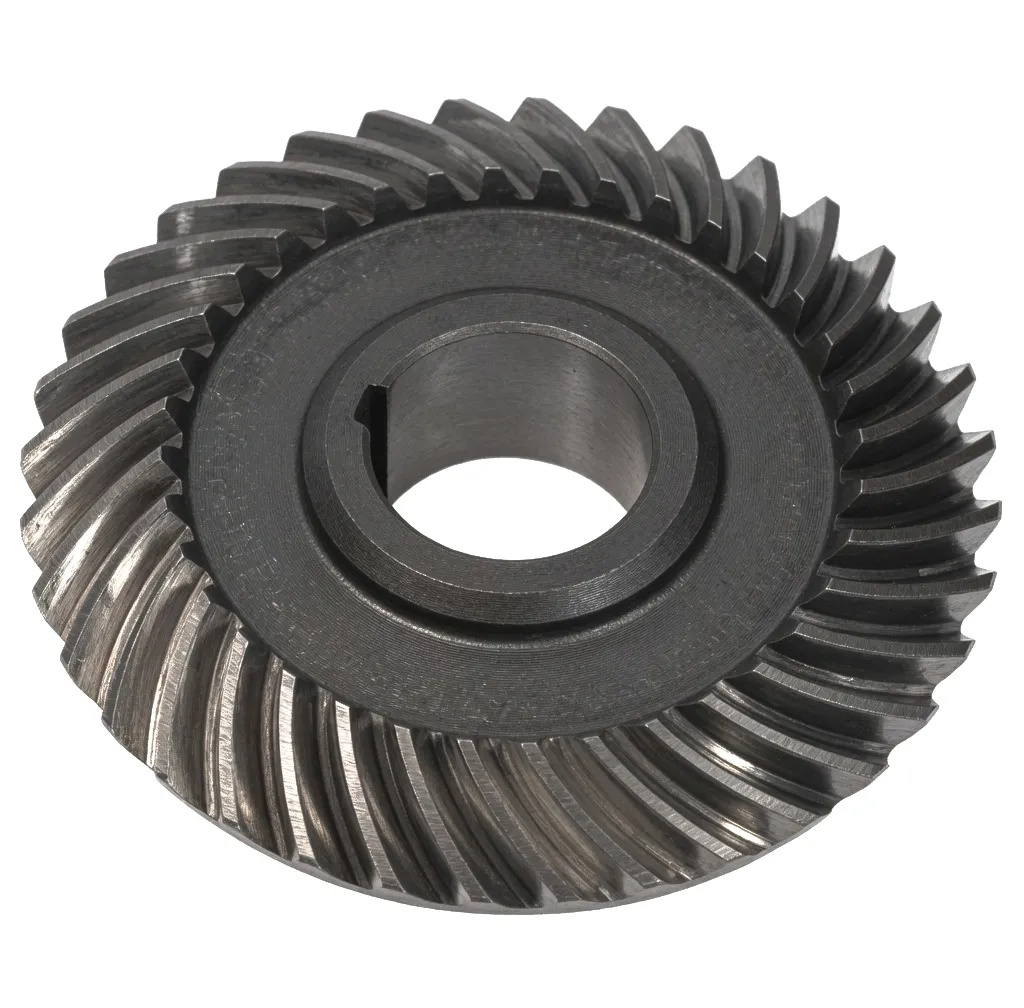

Each spiral bevel gear is cut from certified 20CrMo billet, then carburised to produce a hard tooth face carried by a tough ductile core. The HRC58-62 surface resists pitting and scuffing across millions of meshing cycles while the core absorbs shock loads without cracking.

Geometric Accuracy

Gleason-method tooth cutting combined with CNC lapping holds every spiral bevel gear inside DIN 3963 Grade 6 tolerances. Pitch variation, runout, and tooth alignment are individually documented, so British assembly plants receive units that mesh predictably with mating pinions on first fitment.

Silent, Smooth Transfer

The 45-degree helix angle engages several teeth at once, distributing load gradually rather than slamming a single flank. This spiral bevel gear therefore runs quieter and cooler than straight-cut alternatives, which matters for indoor UK facilities watching workplace noise exposure limits.

Ready for UK Conditions

Humid coastal air, hard water spray, and swing-shift duty cycles define many British sites. Each spiral bevel gear bound for UK ports leaves our facility with a moisture-barrier wrap, rust inhibitor coating, and desiccant bag sized for North Sea transit and inland warehousing.

How It Transmits Power

A spiral bevel gear transmits rotational motion between shafts that meet at an angle, most commonly ninety degrees. Curved teeth cut along a logarithmic spiral path engage progressively, so load transfer begins at one end of the flank and sweeps across as the input shaft rotates. This gradual meshing characteristic reduces impact stress at the instantaneous contact line, and is the reason right-angle gearboxes favour this tooth form for higher-speed and higher-torque duties over straight-cut alternatives. Efficiency typically sits between 97 and 99 percent under properly lubricated conditions. British drivetrain designers often choose a spiral bevel gear set over hypoid alternatives when shaft centres genuinely intersect, because no offset-induced sliding needs to be compensated for in the lubricant specification. The 45-degree helix angle on this unit is a balanced compromise between axial thrust generation and contact ratio across the meshing cycle.

20CrMo Metallurgy

20CrMo is a chromium-molybdenum low-alloy structural steel formulated for case-hardened gearing. Chromium at roughly 0.8 to 1.1 percent refines grain structure and lifts hardenability, while 0.15 to 0.25 percent molybdenum suppresses temper embrittlement during the oil quench following carburising. After carburising near 920 degrees Celsius and controlled cooling, the treated spiral bevel gear develops a measured case depth of 0.8 to 1.2 millimetres, matched to the M4.5 module so tooth bending strength at the root and flank contact fatigue resistance stay balanced. The HRC58-62 surface resists Hertzian contact stress, abrasive wear, and micropitting, while the tempered core around HRC28-35 absorbs overload torque spikes. UK buyers receiving 3.1 mill certificates will see carbon 0.18-0.22, manganese 0.40-0.70, silicon 0.17-0.37, phosphorus and sulphur each under 0.030, confirming conformity to the EN 10084 equivalent used across European driveline manufacturing.

Typical British Applications

Typical UK applications for this spiral bevel gear include underground mining haulage drives in Durham and South Wales, offshore winch assemblies feeding North Sea platforms, steel rolling mill auxiliary drives in Scunthorpe and Port Talbot, wind turbine yaw and pitch gearboxes across the North Sea Array, and agricultural power take-off drivelines used by contractors around East Anglia and the Yorkshire Wolds. Each sector stresses the spiral bevel gear differently: mining duty is shock-heavy and abrasive, offshore applications demand saltwater corrosion margins, rolling mill drives run hot for long periods, renewables require low-noise behaviour at variable load, and agricultural PTOs cycle aggressively across wet, muddy, and dusty seasonal conditions. Our sales engineers map your duty cycle, ambient temperature range, lubrication regime, and expected service interval against available case depth options before confirming pricing.

Material certificates arrived before the parts themselves, which speeds our goods-in inspection. The spiral bevel gear profiles matched our pinion contact pattern first time, with no shim adjustment required on the production line.

We specified a tighter surface finish and got a technical call-back within hours, not days. ISF superfinishing was quoted fairly and delivered on schedule for our North Sea tug rebuild programme.

Swapping to this supplier cut our unplanned gearbox downtime by about forty percent across eighteen months. Tooth wear patterns stayed inside normal bands, and the quote-to-delivery rhythm fits our annual shutdown schedule.

Inside Our Factory — Built Around Your Drawing

Ever Power operates a dedicated bevel division with seventy-plus Gleason and Klingelnberg generating and grinding centres, backed by a metallurgical lab running hardness traverses, microstructure imaging, plus Rockwell, Vickers, and Brinell machines side by side. Custom spiral bevel gear work runs from prototype singles for UK design houses through to scheduled OEM releases of several thousand units monthly. Modules from 1 to 20, tooth counts from 10 to 150, outer diameters up to 1,500 millimetres, and non-standard helix angles between 30 and 50 degrees can be quoted against your drawing, sample, or reverse-engineered CMM report. Material substitutions, including 18CrNiMo7-6, 17NiCrMo6-4, and EN36C, sit inside our routine process envelope. Every order receives a named project engineer who shepherds the job from drawing review through first-article approval to despatch, because buyers in Britain need a single accountable contact rather than a request ticket passed between desks. Send your drawing today for a same-week quotation.

Pricing for an M4.5 Z35 spiral bevel gear in 20CrMo with DIN 3963 Grade 6 accuracy varies with batch size, surface finish, and inspection scope. UK buyers ordering single prototype units generally see quotations in the mid-three-figure range, while scheduled OEM orders of 50 or more drop significantly per piece. Send your drawing today for a formal quote against your specific specification.

Mining equipment builders, offshore winch fabricators, agricultural PTO driveline assemblers, steel mill auxiliary drive rebuilders, and marine propulsion refit yards across the UK most frequently specify this material and hardness combination. It balances manufacturing cost against the contact fatigue life their duty cycles demand, and supports the shock loading typical of British industrial environments.

Send your original drawing, a scanned sample, or a CMM report to sales@gear-chains via the Get a Quote button on this page. Our Ever Power engineering desk replies inside one UK business day, including indicative lead time to Felixstowe, Southampton, or London Gateway plus the list of certificates included at no extra cost.

Carburising followed by oil quenching and low-temperature tempering is the correct specification for this class of service in UK mines. That process delivers the HRC58-62 case hardness this unit ships with, alongside a 0.8 to 1.2 millimetre case depth matched to M4.5 module tooth bending loads under shock duty cycles.

Choose a spiral bevel gear when input and output shaft centres genuinely intersect at a point, since there is no offset to compensate for and efficiency stays above 97 percent. A hypoid gear only earns its place when shaft offset is required, for example to pass a drive shaft under a vehicle cabin or around equipment clearance constraints.

Sea freight from our dispatch dock to Felixstowe, Southampton, or London Gateway averages 32 to 40 days door-to-port, with air freight tightening that window to 5 to 8 days for urgent shutdown replacements. UK customs clearance typically adds one to two business days, depending on your freight forwarder and HS code paperwork.
